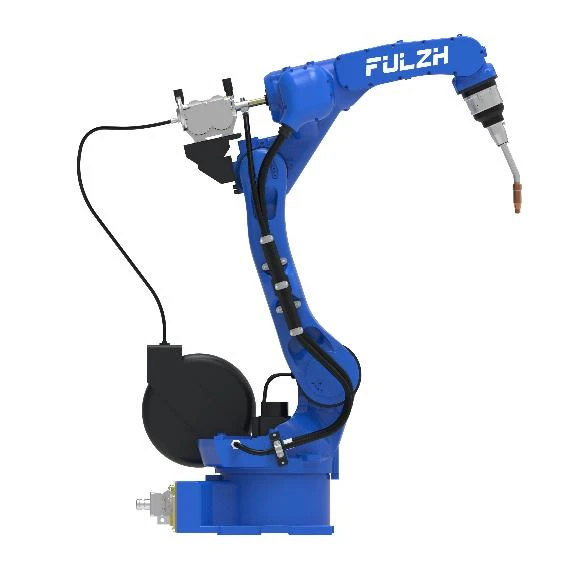

Welding Robot FRW14-6010 ( Arm Length 1440mm )
Payload 10kg
Reach 1440mm
Application Welding
MIG, MAG, TIG, carbon steel, stainless steel, aluminum.
We produce professional welding robots for more than 10 years. Reliability was the decisive factor in choosing FULZH as a project partner.
Send Inquiry
Product Details ofWelding Robot FRW14-6010 ( Arm Length 1440mm )
Product dimensions
Product feature and application
High degree of automation
Precise control and precision welding
Flexibility and adaptability
Improve cost-effectiveness
product Parameter
|
Robot body standard specifications |
||
|
Model |
FRW14-6010 |
|
|
Axis |
6 Axis |
|
|
Reach |
1440mm |
|
|
Max Payload |
10KG |
|
|
IP Grade |
J1, J2: IP56. J3, J4, J5, J6: IP67 |
|
|
Power Capacity |
4.5KVA |
|
|
Input/output signal |
Standard: 16 input/16 output 24V DC |
|
|
Robot Weight |
210KG |
|
|
Repeatability |
±0.05mm |
|
|
Motion Range |
1 Axis (S) |
±167° |
|
2 Axis (L) |
+80° ~ -145° |
|
|
3 Axis (U) |
+145° ~ -75° |
|
|
4 Axis (R) |
±190° |
|
|
5 Axis (B) |
+50° ~ -210° |
|
|
6 Axis (T) |
±220° |
|
|
Maximum Speed |
1 Axis (S) |
285/s |
|
2 Axis (L) |
247°/s |
|
|
3 Axis (U) |
285°/s |
|
|
4 Axis (R) |
392°/s |
|
|
5 Axis (B) |
272°/s |
|
|
6 Axis (T) |
1353°/s |
|
|
Application |
Welding (MIG, TIG, Laser) |
|
|
4 Axis (R) ( N.m) |
103.5 |
|
|
5 Axis (B) ( N.m) |
51.84 |
|
|
6 Axis (T) ( N.m) |
32.64 |
|
|
Built-in Air Gas Pipe |
Φ10mm |
|
|
Installation Methods |
Floor, Upside-down, Angle |
|
|
Installation Environment |
Temperature: 0–45°C Humidity: 20–80 %RH (non–condensing) Vibration acceleration: below 4.9m/S² (0.5G) Altitude: below 1000m No ignition, corrosive gas, liquid or splash. Less oil. No dust. Keep away from electromagnetic sources and magnetic field. |
|
Product Certification
Deliver, shipping and serving
1,Our standard product delivery time is 10 days.
2,We can provide EXW, FOB and CIF delivery terms.
3,We have our own carrier company can provide you very safe, fast, cheap delivery service.
After-sales Service
Our company has two manufacturing bases and currently has more than 200 employees, 100 technical engineers, and 50 of them are mainly engaged in customer service, can provide 24 hours online technical support.
